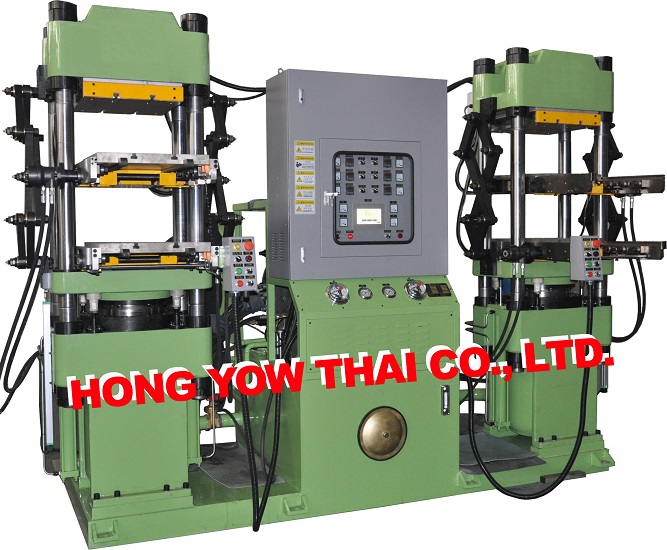

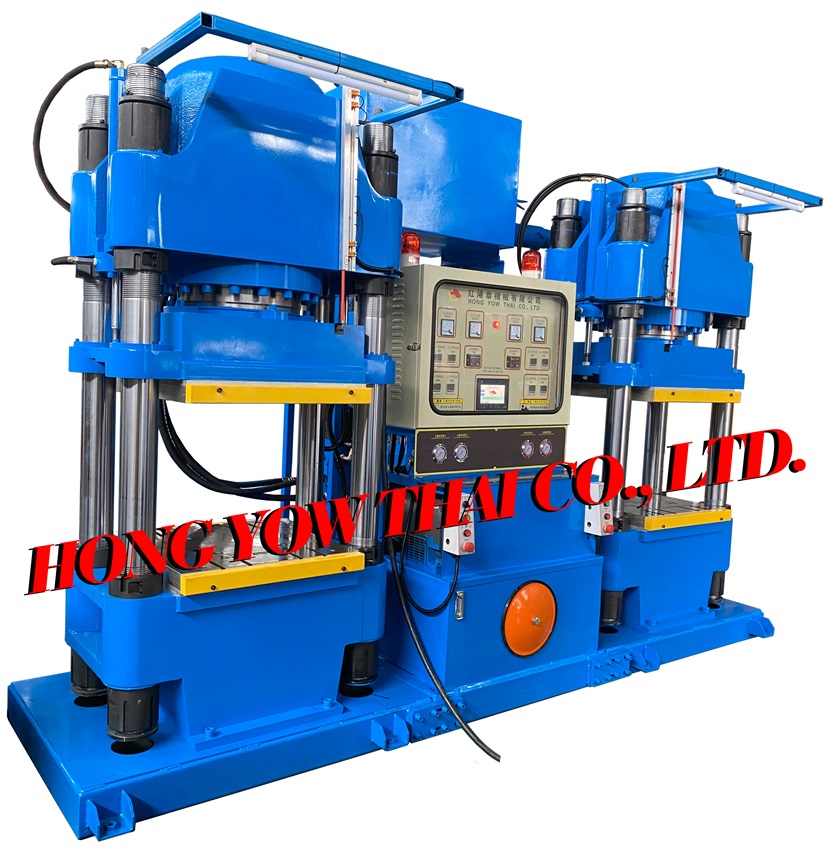

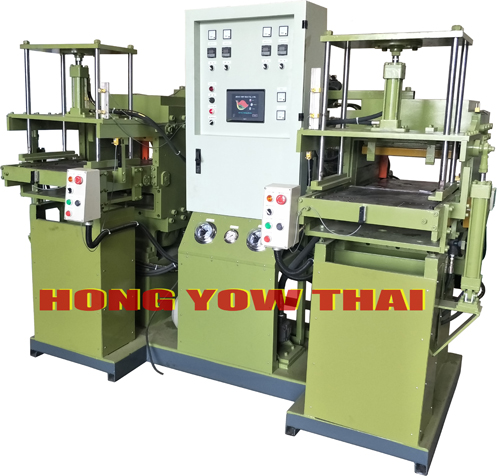

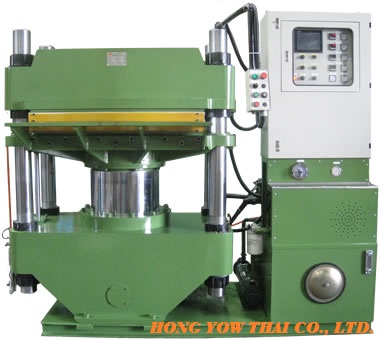

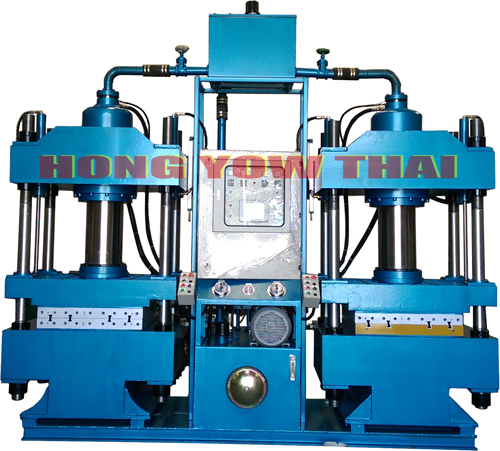

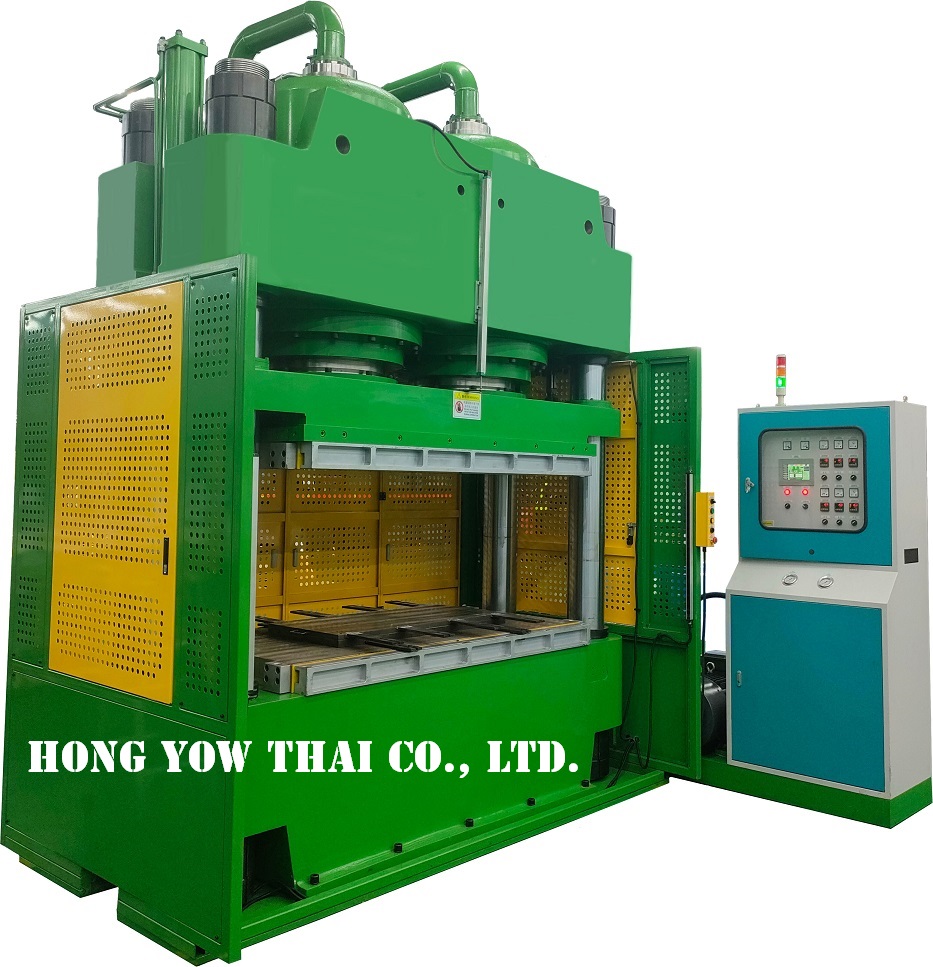

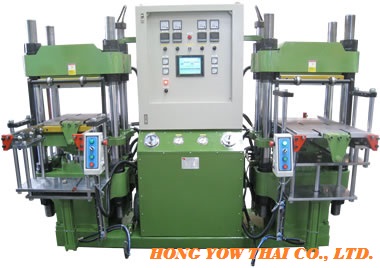

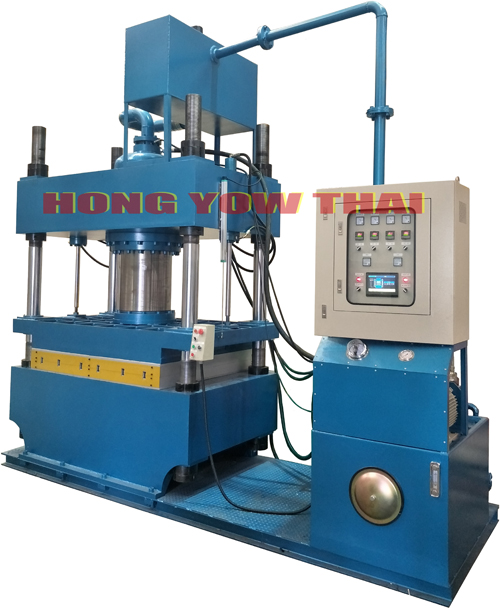

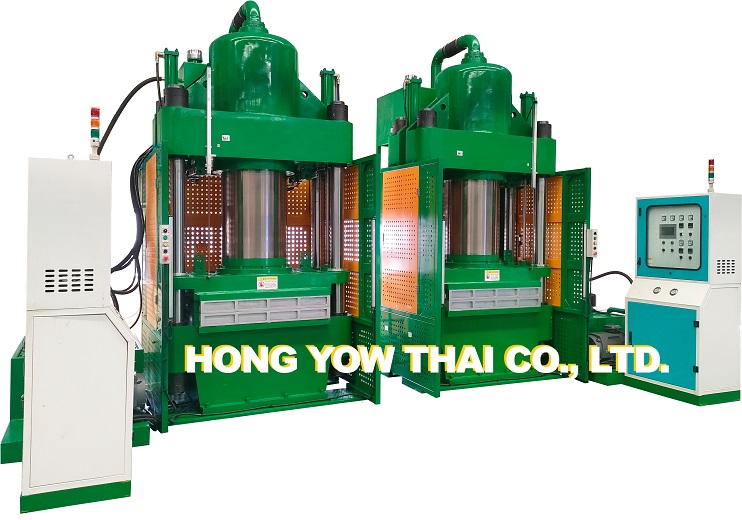

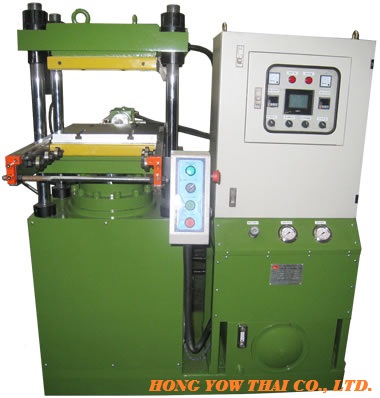

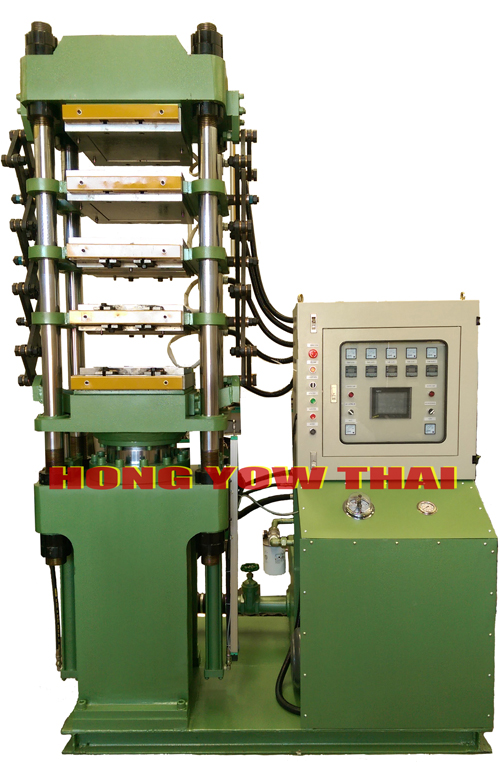

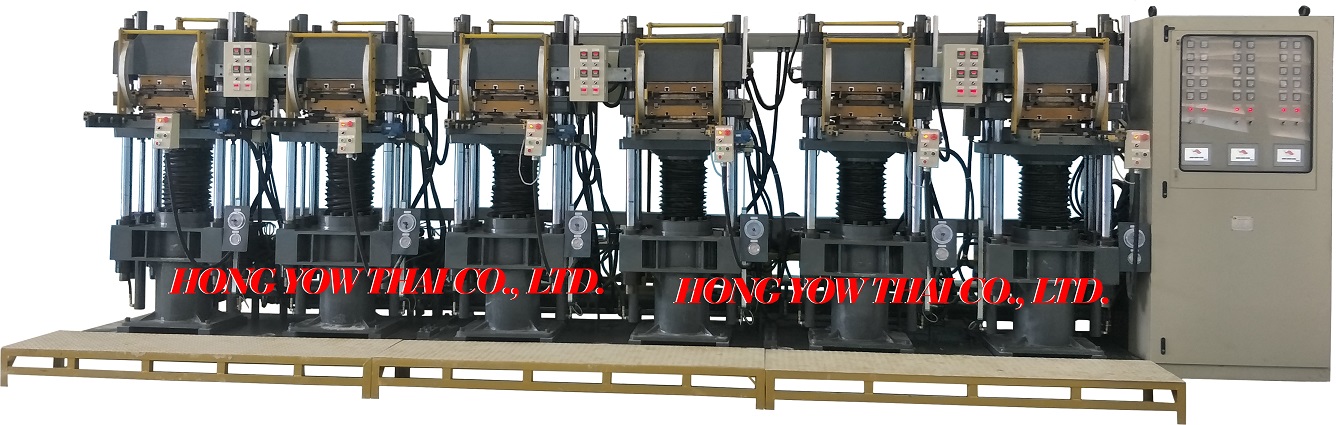

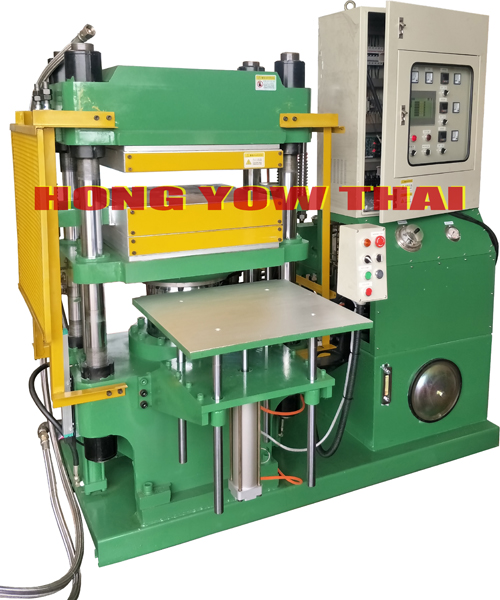

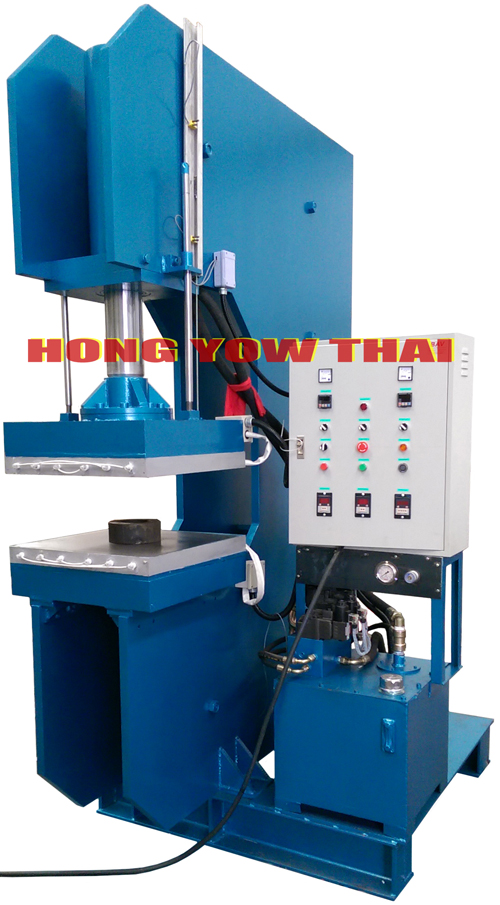

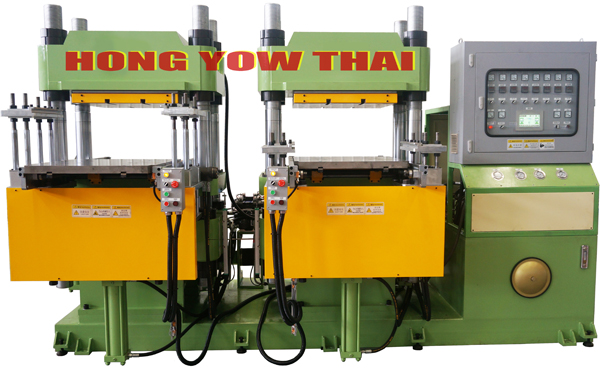

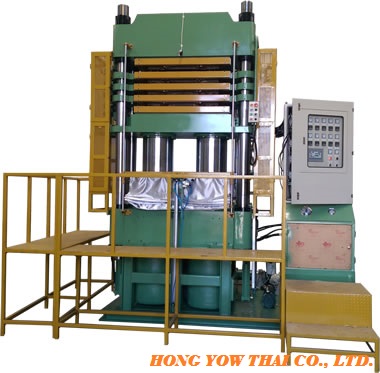

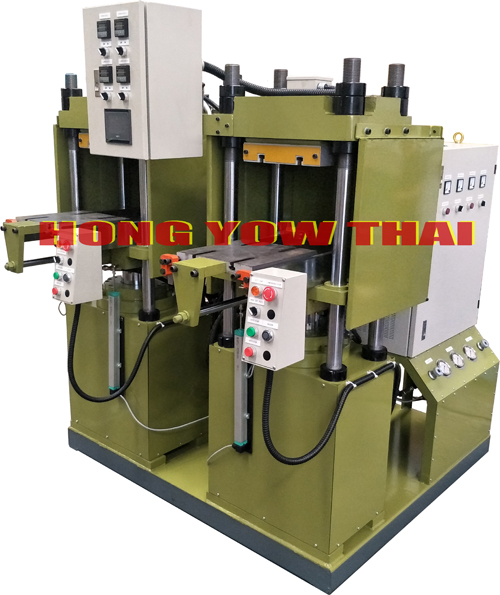

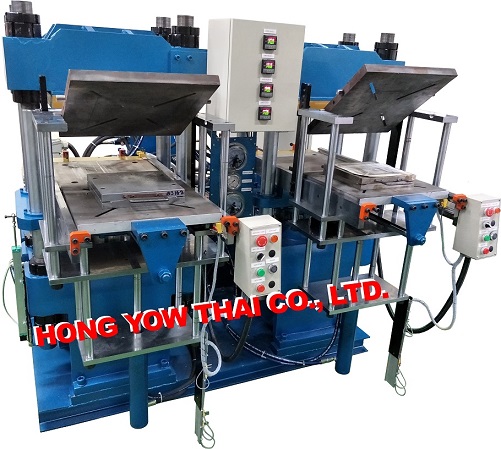

| Products>Hot
Press Molding Machine |
1.In / Out-molds :
Designed with special isolating devices to prevent wearing of the heat plate
and the in / out-mold plate.
2.Front ejector :
Designed using double-layer oil-less bearings, protected with a dust seal.
3.Monitoring design :
Allow overall monitoring on machine actions, pressure and flow rate, and
warning messages and records.
4.Oil path design :
Fully proportional hydraulic system, pressure and speeds can be easily
adjusted.
5.Electrical control system :
(1)Precise temperature control is achieved using
PID calculations, temperature can be adjusted by connecting the
man-machine interface.
(2)The module saving function includes temperature, pressure/flow rate, time
and function settings.
(3)Heating system : uses SSR solid relay with fast heat-up without exceeding
the limit.
(4)Mold calibration : available with slow mode calibration. |
|
Model |
SYR-06 |
SYR-10 |
SYR-15 |
SYR-20 |
SYR-25 |
SYR-30 |
SYR-50 |
| Oil
pump pressure
(kg/cm²) |
210 |
|
Electric power
(HP) |
5 |
7.5 |
10 |
15 |
| Output (Ton) |
60 |
100 |
150 |
200 |
250 |
300 |
500 |
| Gross
weight
(kg) |
3000 |
5000 |
6500 |
7200 |
8200 |
9500 |
16000 |
|
Cylinder diameter
(mm) |
Φ 200 |
Φ 254 |
Φ 254 |
Φ 352 |
Φ 400 |
Φ 456 |
Φ 560 |
| Shaft
diameter
(mm) |
Φ 200 |
Φ 254 |
Φ 254 |
Φ 352 |
Φ 400 |
Φ 456 |
Φ 560 |
| Shaft
stroke
(mm) |
400 |
500 |
|
Platform column
(mm) |
Φ 60 |
Φ 70 |
Φ 75 |
Φ 80 |
Φ 100 |
Φ 110 |
Φ 130 |
|
Platform
(mm) |
400x400 |
450x460 |
510x510 |
610x610 |
850x1000 |
|
Machine dimension
(M) |
2.0x1.6x2.0 |
2.4x1.6x2.2 |
2.4x1.8x2.0 |
2.5x2.0x2.2 |
3.0x2.2x2.4 |
3.6x2.6x2.4 |
4.2x2.4x2.6 |
| Oil
tank capacity
(L) |
250 |
300 |
400 |
500 |
|
|
Flow of Machine motions : |
|
|
