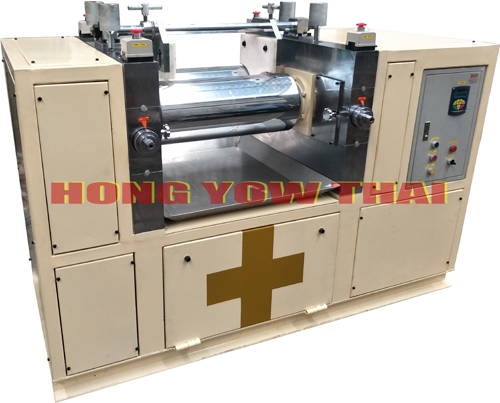

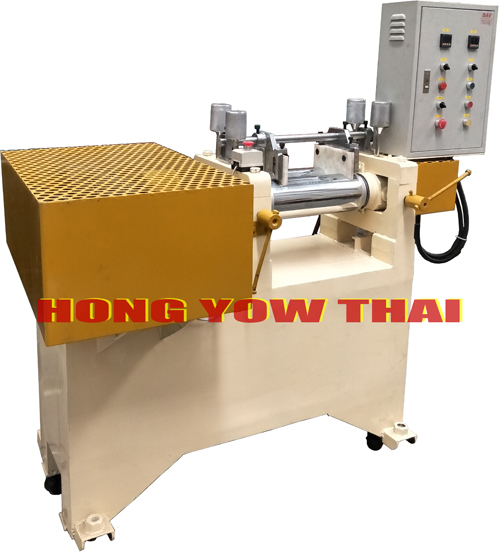

Products>Roll
Mill Machine |
The machine adopts the titanium
alloy chilled cast iron, hard, smooth surface inside the cavity processing,
use water cooling
roller surface temperature uniformity.
The machine adopts machine of decelerate of hard tooth flank.
The machine adopts bearing drive, using glycerin or thin oil lubrication.
Adjust way for manual or electric.
LS electrical system adopts imported components.

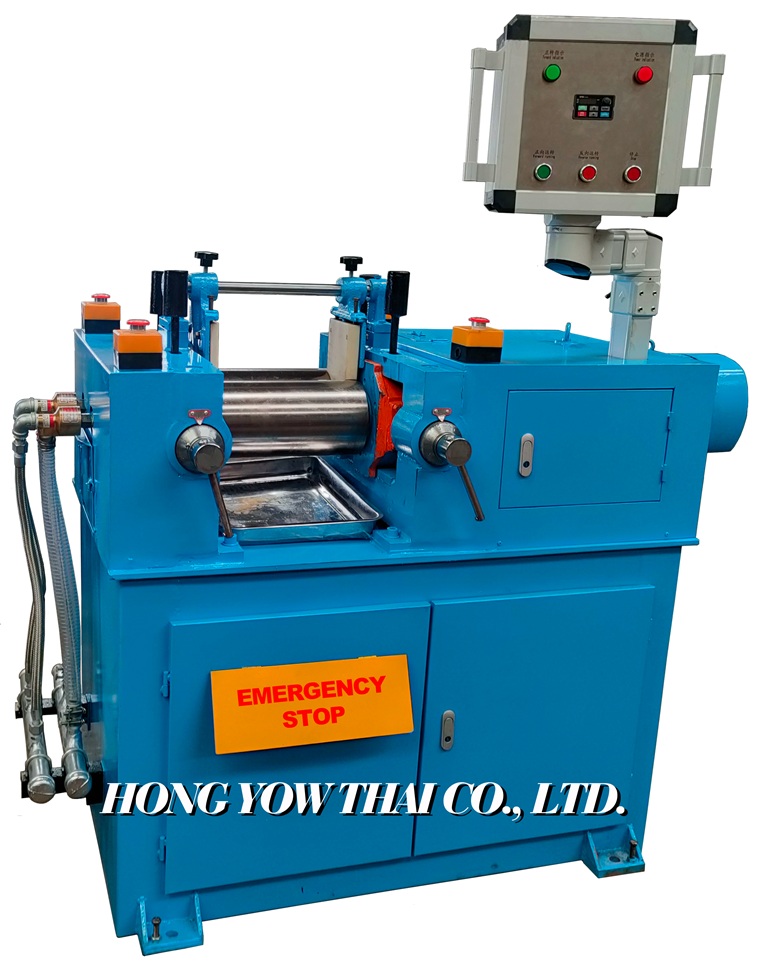

This machine is equipped with an emergency stop button, than the traditional
way of braking operation is convenient, safe
and reliable. |
Model |
Mixing mill |
XK-160 |
XK-250 |
XK-360 |
XK-400 |
XK-450 |
Roll
diameter |
mm |
Φ 160 |
Φ 250 |
Φ 360 |
Φ 400 |
Φ 450 |
Roll
working length |
-- |
320 |
620 |
900 |
1000 |
1200 |
Front roll linear speed |
m/min |
9 |
16.3 |
16.7 |
18.65 |
21.8 |
Speed ratio of rolls |
Mixing
mill |
1:1.35 |
1:1.1 |
1:1.25 |
1:1.27 |
Max
roll space |
mm |
4.5 |
8 |
10 |
12 |
Compound feeding capacity |
kg |
1~2 |
10~15 |
20~25 |
18~35 |
50 |
Motor
power |
KW |
5.5 |
18.5 |
30 |
45 |
55 |
Dimension-L |
mm |
1133 |
2722 |
4200 |
4471 |
5405 |
Dimension-W |
mm |
920 |
1115 |
1780 |
1850 |
1740 |
Dimension-H |
mm |
1394 |
1345 |
1760 |
1855 |
1790 |
Gross
weight |
Ton |
~2 |
~3.2 |
~6.5 |
~8.3 |
~11.4 |
|
Model |
Mixing mill |
XK-550 |
XK-560 |
XK-610 |
XK-660 |
XK-710 |
Sheeting mill |
XKY-550 |
-- |
XKY-610 |
XKY-660 |
XKY-710 |
Roll
diameter |
mm |
Φ 550 |
Φ 560~Φ 510 |
Φ 610 |
Φ 660 |
Φ 710 |
Roll
working length |
-- |
1500 |
1530 |
1930 |
2130 |
2200 |
Front roll linear speed |
m/min |
28 |
26.4 |
30.5 |
28 |
31.9 |
m/min |
31 |
-- |
30 |
31.6
30.5 |
25.6 |
Speed ratio of rolls |
Mixing
mill |
1:1.2 |
1:1.1 |
1:1.24 |
1:1.51 |
Sheeting mill |
1:1.09 |
-- |
1:1.09 |
1:1.09
1:1.13 |
1:1.09 |
Max
roll space |
mm |
16 |
15 |
Compound feeding capacity |
kg |
50~65 |
140 |
165 |
190 |
Motor
power |
KW |
110 |
90 |
160 |
185/250 |
280 |
Dimension-L |
mm |
6646 |
6270 |
6575 |
7280 |
8185 |
Dimension-W |
mm |
2736 |
2282 |
2910 |
3400 |
3910 |
Dimension-H |
mm |
2105 |
2000 |
1800 |
2530 |
2270 |
Gross
weight |
Ton |
~22 |
~22.5 |
~44 |
~49 |
~59 |
|
|
|
