| Products>Injection
Molding Machine |
|
Features : |
|
Control Unit : |
|
1.Low pressure for mold
protection.
2.Multi-stages control up - down.
3.Pressure stable, accurate, quiet.
4.Temperture accurately, without died material.
5.Exhaust accurately, low noise.
6.Various function, HMI / PLC controlled. |
1.Fully functional flow control
display.
2.User-friendly software programming.
3.Multi sets of molding data memories.
4.Whole-unit breakdown detecting function. |
|
Injection System : |
|
Material Feeding System : |
|
1.Multi-step pressure, speed and
injection volume
control.
2.Digital injection volume control system design.
3.Injection lever is durable and features
anti-reversing function.
4.Injection head has a spiral-circuit temperature
control system, featuring precise temperature
control. |
1.A unique two-step feeding
system that can
efficiently eliminate air bubbles by utilizing the
most advanced technology.
2.A material anti-reversing device is equipped.
|
|

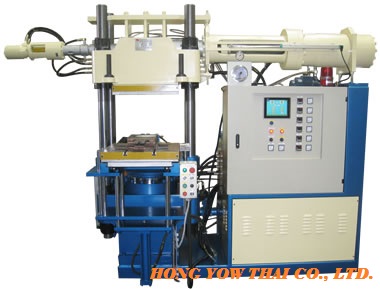

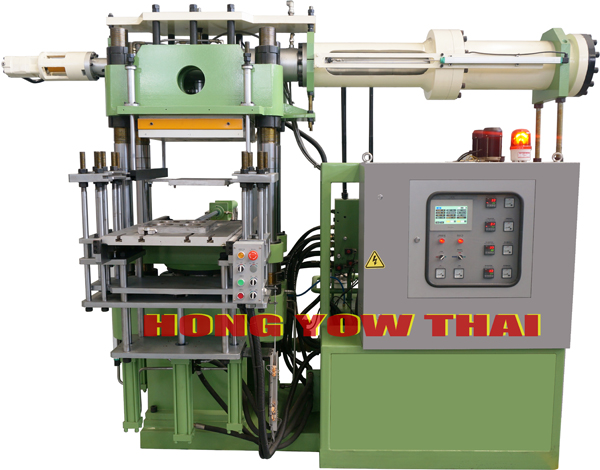

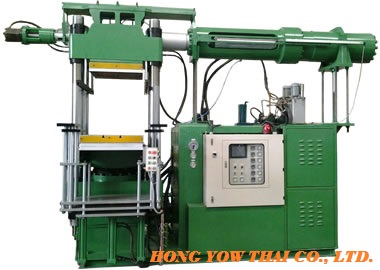

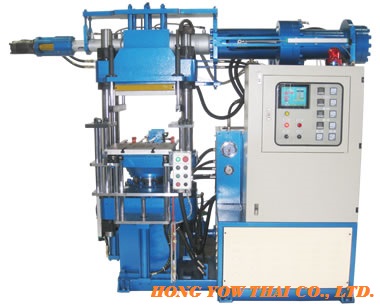

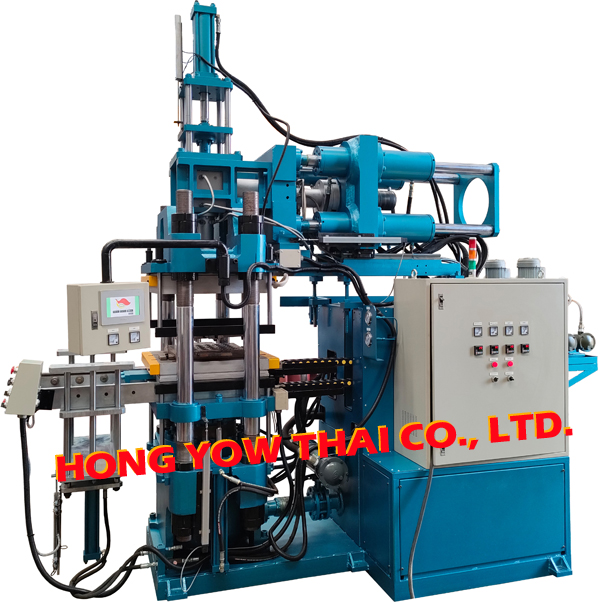

Injection Molding Machine (Horizontal Type) |
|
Model |
INJ-100 |
INJ-200 |
INJ-300 |
INJ-400 |
INJ-500 |
|
Platform
(mm) |
450x460 |
550x550 |
600x600 |
700x700 |
700x750 |
| Motor
Power
(HP) |
10 |
15 |
20 |
30 |
| Output
(Ton) |
100 |
200 |
300 |
400 |
500 |
|
Cylinder diameter
(mm) |
Φ 250 |
Φ 350 |
Φ 450 |
Φ 500 |
Φ 560 |
| Stroke
(mm) |
400 |
500 |
|
Injection volume
(C.C.) |
1000 |
1600~2000 |
2500~3000 |
3000~6000 |
4000~12000 |
| Screw
diameter
(mm) |
Φ 44 |
Φ 70 |
|
Injection cylinder diameter
(mm) |
Φ 65 |
Φ 75 |
Φ 90 |
Φ 120 |
Φ 130 |
|
Material cylinder diameter
(mm) |
Φ 200 |
Φ 225 |
Φ 275 |
Φ 300 |
Φ 330 |
| Unit
pressure (kgf/cm²) |
210 |
|
Machine size
(M) |
2.2x1.6x2.3 |
2.5x1.8x2.5 |
4.1x2.6x2.8 |
4.1x2.4x2.8 |
5.1x2.5x3.4 |
| Oil
tank capacity
(L) |
200 |
300 |
500 |
600 |
| Weight
(kg) |
4500 |
6500 |
9000 |
11000 |
13000 |
|
|

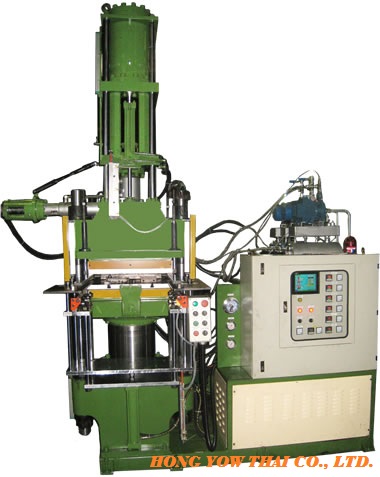

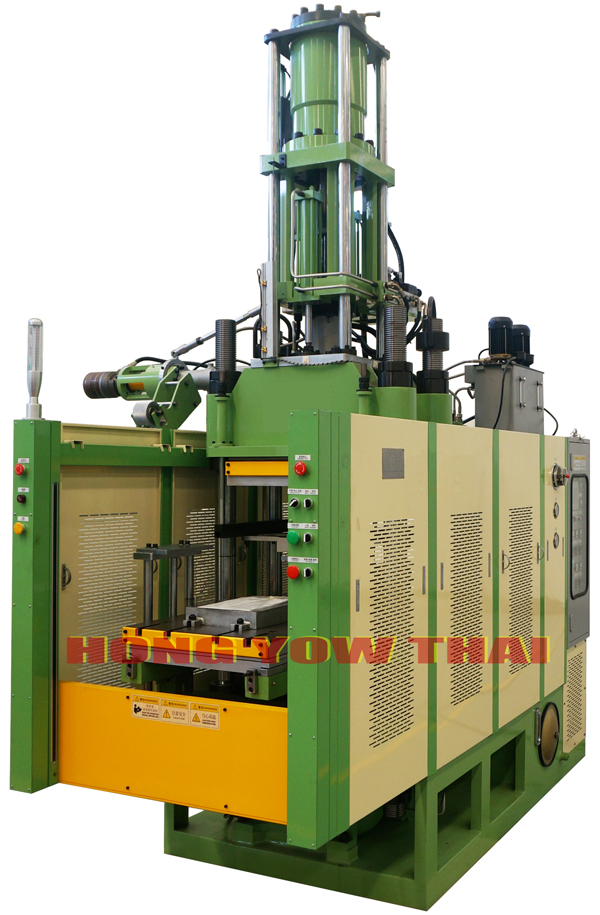

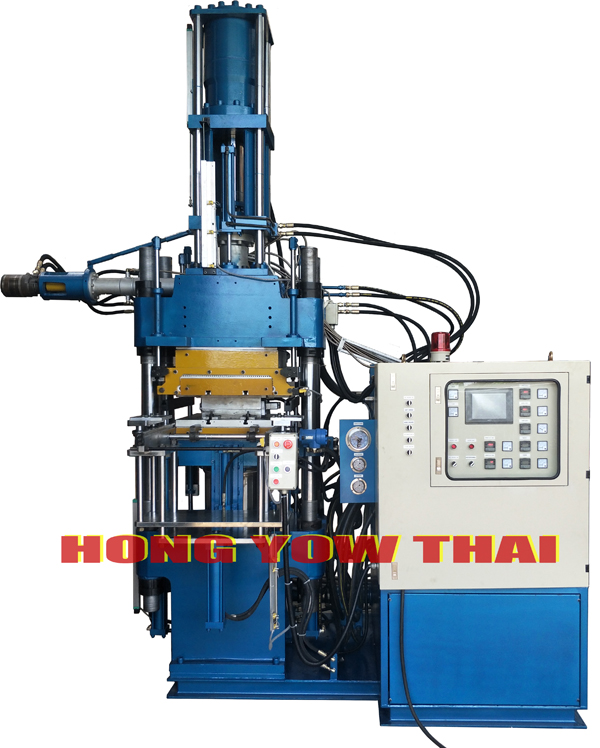

Injection Molding Machine (Vertical Type) |
|
Model |
RI-15 |
RI-20 |
RI-30 |
|
Platform
(mm) |
500x475 |
550x550 , 600x600 |
600x575 |
| Motor
Power
(HP) |
15 |
20x6P |
| Output
(Ton) |
150 |
200 |
300 |
|
Cylinder diameter
(mm) |
Φ 300 |
Φ 350 |
Φ 450 |
| Stroke
(mm) |
400 |
|
Injection volume
(C.C.) |
1000~1500 |
1600~2000 |
2000~3000 |
| Screw
diameter
(mm) |
Φ 44 |
Φ 50 |
|
Injection cylinder diameter
(mm) |
Φ 75 |
Φ 77 |
Φ 90 |
| Unit
pressure (kgf/cm²) |
-- |
-- |
210 |
|
Machine size
(M) |
2.6x1.4x3.0 |
2.7x1.6x3.2 |
2.8x1.8x4.5 |
| Oil
tank capacity
(L) |
175 |
200 |
400 |
| Weight
(kg) |
5500 |
7500 |
10500 |
|
|
Flow of Machine motions : |
|
|
|
