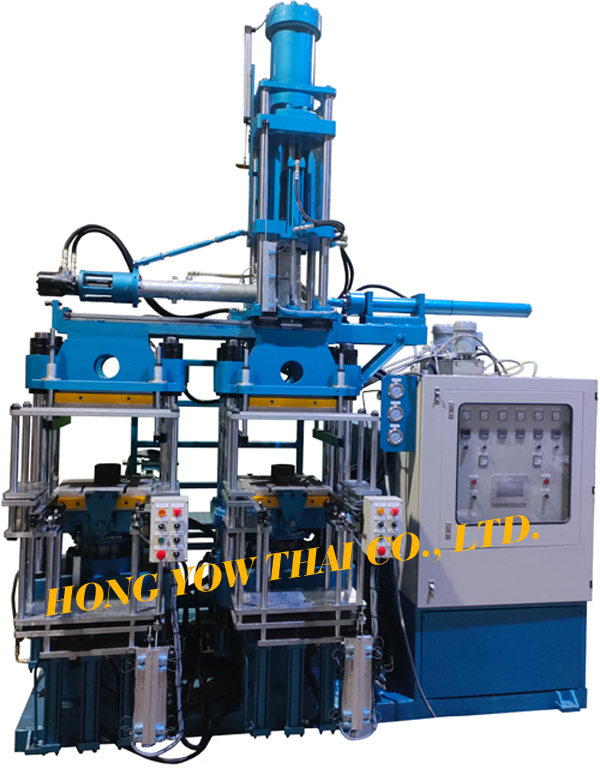

| Products>Injection
Two Station
Molding Machine |
|
Features : |
|
Control Unit : |
|
1.Low pressure for mold
protection.
2.Multi-stages control up - down.
3.Pressure stable, accurate, quiet.
4.Temperture accurately, without died material.
5.Exhaust accurately, low noise.
6.Various function, HMI / PLC controlled. |
1.Fully functional flow control
display.
2.User-friendly software programming.
3.Multi sets of molding data memories.
4.Whole-unit breakdown detecting function. |
|
Injection System : |
|
Material Feeding System : |
|
1.Multi-step pressure, speed and
injection volume
control.
2.Digital injection volume control system design.
3.Injection lever is durable and features
anti-reversing function.
4.Injection head has a spiral-circuit temperature
control system, featuring precise temperature
control. |
1.A unique two-step feeding
system that can
efficiently eliminate air bubbles by utilizing the
most advanced technology.
2.A material anti-reversing device is equipped.
|
|
Model |
RI-10-H2 |
| Plate
size
(mm) |
450x460 |
| Motor
Power
(HP) |
15x6P |
| Output
(Ton) |
100 |
|
Cylinder diameter
(mm) |
Φ 250 |
| Stroke
(mm) |
400 |
|
Injection volume
(C.C.) |
1000 |
| Screw
diameter
(mm) |
Φ 44 |
|
Injection cylinder diameter
(mm) |
Φ 60 |
| Unit
pressure (kgf/cm²) |
210 |
|
Electric system |
PLC
control (Use touch screen 8.0"menu Thai) |
|
Hydraulic parts |
Use
suitable brand |
| Oil
seals |
Use
suitable NBR oil seal |
|
Hydraulic pump |
Use
suitable brand |
|
Function |
Up /
Down / Mold in and out with opener 2 layers (3RT) |
|
|
Flow of Machine motions : |
|
|
|
