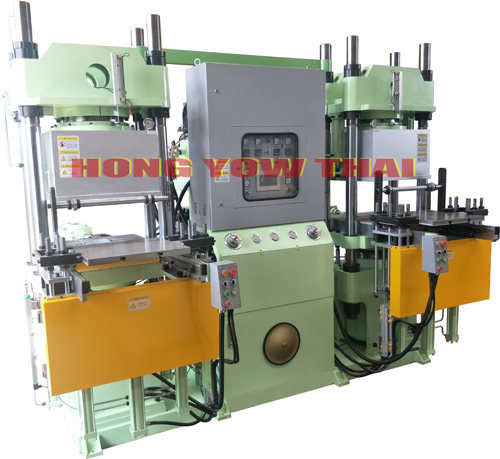

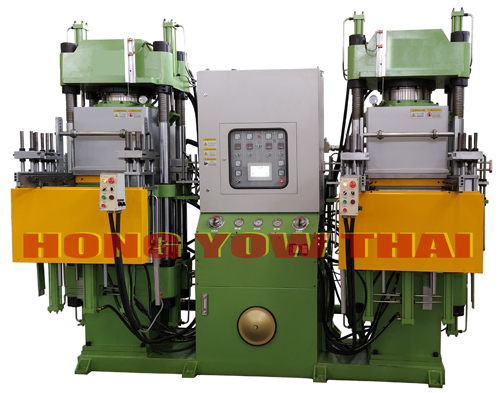

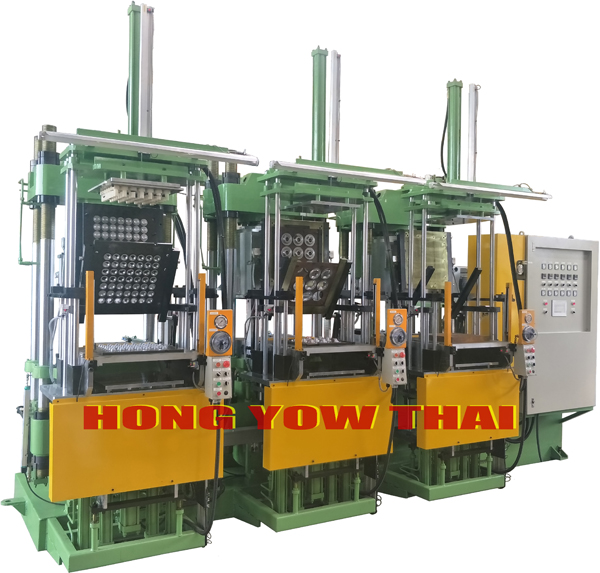

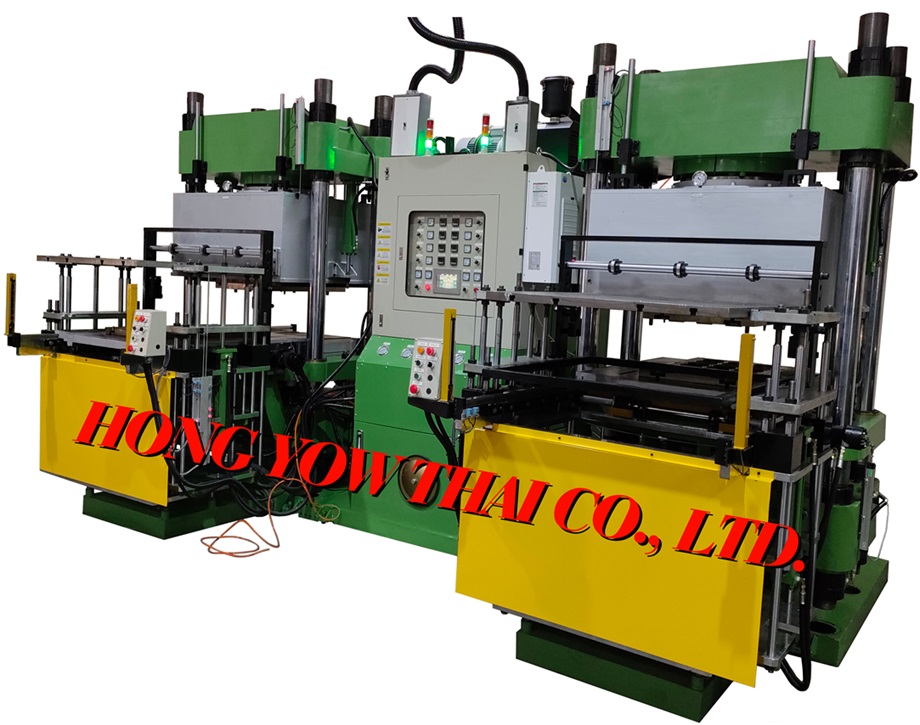

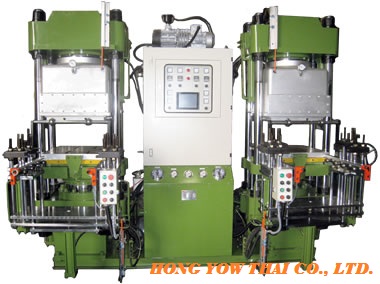

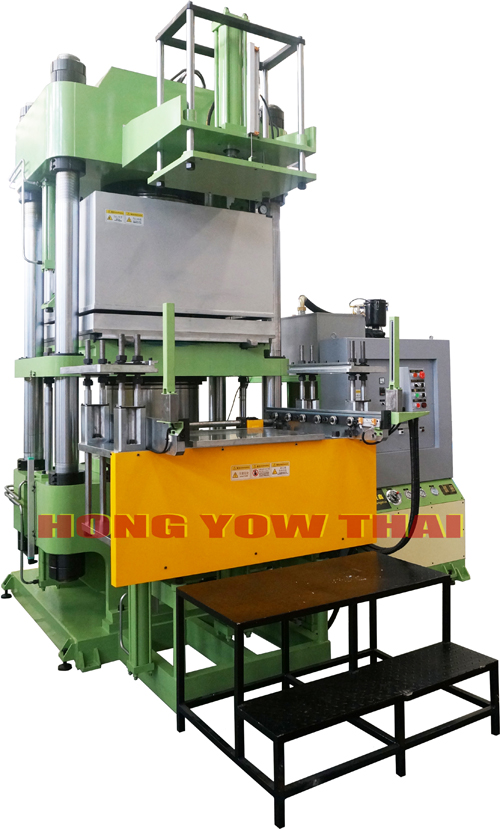

Molding Machine |
Vacuum system :
Utilizes upward pull motion for hydraulic cylinder in the vacuum hood, which
supports to provide stability and prevent oil leakage.
In / out-molds :
Designed with special isolating devices to prevent wearing of the heat plate
and the in / out-mold plate.
Front ejector :
Designed using double-layer oil-less bearings, protected with a dust seal.
Monitoring design :
Allow overall monitoring on machine actions, pressure and flow rate, and
warning messages and record.
Hydraulic circuit design :
Fully proportional hydraulic system is designed for easily adjustable
pressure and speed.
Electrical control system :
Precise temperature control is achieved using PID calculations; temperature
can be adjusted by connecting the man-machine interface.
The module saving function includes temperature, pressure / flow rate, time
and function settings.
Heating system :
Uses SSR with fast heat-up without exceeding the limit.
Mold calibration :
Available with slow mode calibration. |
|
Model |
SV-10 |
SV-20 |
SV-25 |
SV-40 |
SV-90 |
|
Diameter of cylinder (mm) |
Φ 250 |
Φ 350 |
Φ 400 |
Φ 450 |
Φ 762 |
| Output
(Ton) |
100 |
200 |
250 |
300 |
900 |
| Stroke
(mm) |
300 |
300 |
350 |
300 |
500 |
|
Platform (mm) |
460x460 |
600x600 |
600x650 |
700x800 |
900x900 * |
| Motor
power (HP) |
10 |
15 |
15x2 |
25 |
|
Platform column (mm) |
Φ 70 |
Φ 80 |
Φ 100 |
Φ 110 |
Φ 150 |
| Vacuum
(KW) |
VC-100-3 |
VC-200-5 |
VC-200-7.5 |
VC-300-11.5 |
| Gross
weight (kg) |
6200 |
8200 |
12000 |
17000 |
20000 |
|
Machine dimensions (M) |
2.4x1.6x3.0 |
2.6x2.0x3.2 |
2.8x2.0x3.5 |
3.2x2.6x3.2 |
3.0x2.0x4.0 |
| Type
of mold opening |
Up / down-in / out-rail-2RT-3RT |
|
|

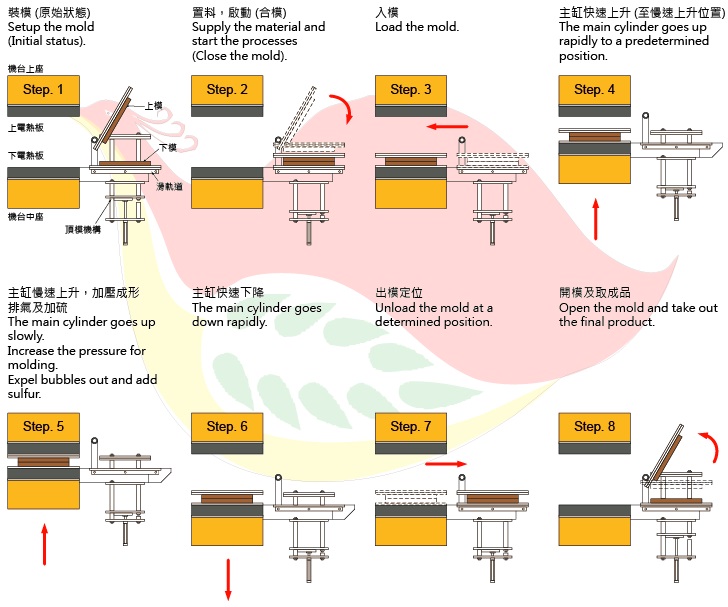

Flow of Machine motions : |
|
|
